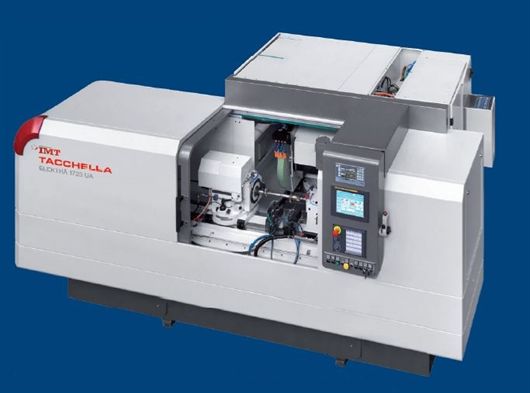

La nuova rettificatrice universale IMT Tacchella Elektra è la soluzione ottimale per tutti i rettificatori che fanno della versatilità produttiva il loro punto di forza.
The new universal grinder IMT Tacchella Elektra is the optimal solution for all grinding machines whose strong point is manufacturing versatility.
PIÙ COMPATTA, PIÙ PRECISA
La nuova rettificatrice universale IMT Tacchella Elektra è la soluzione ottimale per tutti i rettificatori che fanno della versatilità produttiva il loro punto di forza. Grazie al successo ottenuto in settori industriali quali l’automotive, il tessile, le macchine utensili, la rettificatrice, progettata e realizzata da IMT Grinding Group, è il prodotto che, dal 1997 ad oggi, è riuscito a imporsi in vaste aree del pianeta, giungendo ormai alla quarta generazione della famiglia Elektra. Sono ben 27 i modelli disponibili, configurabili combinando taglie, versioni e altezza punte. Grazie alla nuovissima testa portapezzo, azionata da un motore integrato, asse C, e alla nuova contropunta idraulica, possono essere rettificati con precisione assoluta pezzi tondi, non tondi e poligonali di peso fino a 350 kg. La gamma prevista a catalogo copre lunghezze rettificabili di 600, 1.140 e 1.640 mm con altezza punte di 180, 230 e 260 mm, ed è equipaggiata con un asse B torque per l’orientamento automatico della testa portamola, disponibile in cinque diverse esecuzioni, liberamente programmabili tramite il CNC Fanuc32i o, in opzione, con il CNC Siemens Sinumerik 840D sl.

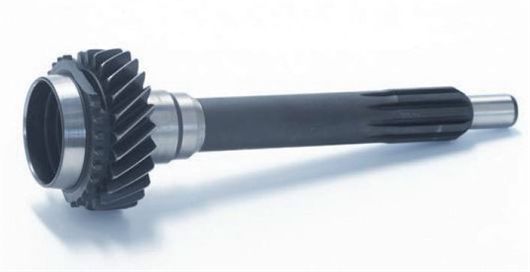

Uno dei principali pezzi che Elektra rettifica sono gli alberi meccanici per i settori automotive, tessile, idraulico.
Some of the main pieces ground by Elektra are mechanical shafts for the automotive, textile and hydraulic applications.
MORE COMPACT, MORE ACCURATE
The new universal grinder IMT Tacchella Elektra is the optimal solution for all grinding machines whose strong point is manufacturing versatility. Leveraging the success achieved in industrial sectors such as automotive, textile and machine tools, the grinder – designed and developed by IMT Grinding Group – has established itself in many world regions since 1997 and is now at the fourth generation of the Elektra family. There are no less than 27 models available, offering different combinations of size, versions and center height. The brand new workhead driven by a built-in motor (C-axis) and the new hydraulic tailstock allow this machine to grind round, not round and polygonal workpieces, weighing up to 350 kg, with a very high degree of accuracy. The range can be used for grinding lengths of 600, 1,140 and 1,640 mm, with center heights of 180, 230 and 260 mm, and it is equipped with a B torque axis for automatic positioning of the wheel holder head, available in five different versions, freely programmable via Fanuc32i CNC or, optionally, SIEMENS 840D sl.
